Description
Blade 600 SL.X is adapted for any task and terrain with confident designs of LED-matrix headlights and Full-LED lighting, automatic transmission, extended chassis, powerful engine, . Blade 600 SL.X is definitely the perfect combination of efficiency and value within all 600 cc ATV selections.
ABOUT TGB:
TGB Motor Co., Ltd. is the leading Taiwanese manufacturer of quality ATVs, which are successfully exported to the leading markets in Europe, USA and all over the world. Besides ATVs, scooters and engines production, TGB Motor Co. is one of the world´s largest manufacturers of CVT – Constant Variable Transmissions for ATVs and scooters. Main customers are Piaggio, Rotax, Peugeot, Minarelli, Motori Morini, Polaris, SYM, Can-Am, Aprilia, BMW and many others. In business since 1965.
Technical Specification
Engine Type 561 cc, Single Cylinder, SOHC
Ignition ECU
Starter Electric
Bore X Stroke Ø 95 × 79.2 mm
Compression Ratio 10.2
Fuel System 42 mm Throttle Body / Programmed Fuel Injection
Max Power 44.8 HP / 6500 rpm
Max Torque 46.5 Nm / 5500 rpm
Drive System 4 × 4 Shaft Drive
Gear Selection L / H / N / R / P
Transmission V-Belt CVT Automatic
Engine Braking System Standard
Over Ride Button Standard
Front Suspension Dual A-arm
Rear Suspension Dual A-arm with Anti-roll Bar
Front/Rear Brake Hydraulic Disc with piston caliper and Hydraulic Foot Brake
Parking Brake Park In Transmission / Lockable Hand Lever
Front Tire AT 25 × 8 – 12 , 6 PLY
Rear Tire AT 25 × 10 – 12 , 6 PLY
Wheelbase (mm) 1290
Length/Width/Height (mm) 2155 X 1240 X 1280
Fuel Capacity 18 L
Electrical Outlet Connector 2 DC 12V 10A 120W
Instrumentation Digital instrument panel with odometer, speedmeter, Tripmeter, RPM, transmission position, fuel gauge, Hi-Temp/Low-Battery lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator

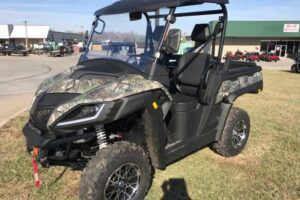

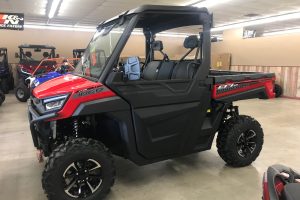

pictures shown include other models available also
