Description
*SNOW BLADE system additional cost
VALIANT AND LEGENDARY
Blade 600SE EPS is now all the rage since it released to the market. The unique and confident design with modern LED-matrix headlights and Full-LED lighting, winch, eps, etc.
TGB history: since 1965
TGB is one of the world’s leading manufacturers of ATVs, scooters, engines and related key components such as CVT, EPS, Differential …etc. TGB brand products have gained an excellent reputation with its robust construction and renowned quality. TGB is recognized as a frequent winner of the ATV of the Year title in Europe, and the best-selling ATV brand ever. In addition, TGB also works closely with a number of the world’s leading manufacturers of scooters, ATVs and UTVs, for OEM / ODM services by offering Engines and key parts.
TGB Motor Co., Ltd. is the leading Taiwanese manufacturer of quality ATVs, which are successfully exported to the leading markets in Europe, USA and all over the world. Besides ATVs, scooters and engines production, TGB Motor Co. is one of the world´s largest manufacturers of CVT – Constant Variable Transmissions for ATVs and scooters. Main customers are Piaggio, Rotax, Peugeot, Minarelli, Motori Morini, Polaris, SYM, Can-Am, Aprilia, ARGO, BMW and many others.
Engine Type 561 cc, Single Cylinder, SOHC
Ignition ECU
Starter Electric
Bore X Stroke Ø 95 × 79.2 mm
Compression Ratio 10.2
Fuel System 42 mm Throttle Body / Programmed Fuel Injection
Max Power 44.8 HP / 6500 rpm
Max Torque 46.5 Nm / 5500 rpm
Drive System 4 × 4 Shaft Drive
Gear Selection L / H / N / R / P
Transmission V-Belt CVT Automatic
Engine Braking System Standard
Over Ride Button Standard
Front Suspension Dual A-arm
Rear Suspension Dual A-arm with Anti-roll Bar
Front/Rear Brake Hydraulic Disc with piston caliper and Hydraulic Foot Brake
Parking Brake Park In Transmission / Lockable Hand Lever
Front Tire AT 25 × 8 – 12 , 6 PLY
Rear Tire AT 25 × 10 – 12 , 6 PLY
Wheelbase (mm) 1290
Length/Width/Height (mm) 2155 X 1240 X 1280
Fuel Capacity 18 L
Electrical Outlet Connector 2 DC 12V 10A 120W

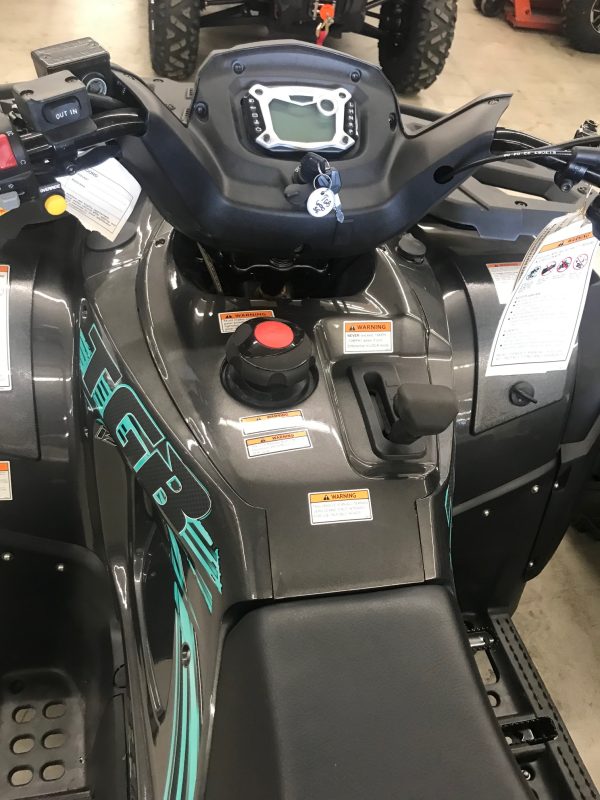

Instrumentation Digital instrument panel with odometer, speedometer, Trip meter, RPM, transmission position, fuel gauge, Hi-Temp/Low-Battery lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator, EPS indicator
