Description
General information

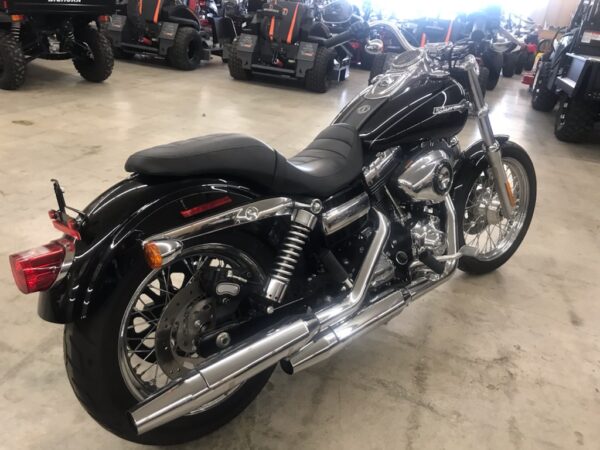

Model Harley-Davidson Dyna Super Glide Custom
Year 2014
Category Custom / cruiser
Engine and transmission
Displacement 1573.3 ccm (96.00 cubic inches)
Engine type V2, four-stroke
Engine details Air-cooled, Twin Cam 96T
Torque 124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM
Compression 10.0:1
Bore x stroke 95.3 x 111.3 mm (3.8 x 4.4 inches)
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system Air
Gearbox 6-speed
Transmission type Belt (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Driveline Primary chain, 34/46 ratio
Fuel consumption 5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Greenhouse gases 126.9 CO2 g/km. (CO2 – Carbon dioxide emission)
Exhaust system Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle) 29.0°
Trail 119 mm (4.7 inches)
Front tire 100/90-H19
Rear tire 160/70-V17
Front brakes Single disc. 4-piston fixed
Rear brakes Single disc. 2-piston torque-free floating
Wheels Steel Laced
Physical measures and capacities
Dry weight 294.8 kg (650.0 pounds)
Weight incl. oil, gas, etc 309.8 kg (683.0 pounds)
Seat height 668 mm (26.3 inches) If adjustable, lowest setting.
Overall length 2344 mm (92.3 inches)
Ground clearance 119 mm (4.7 inches)
Wheelbase 1626 mm (64.0 inches)
Fuel capacity 18.93 litres (5.00 US gallons)
Oil capacity 2.80 litres (2.96 US quarts)
Other specifications
Color options Mysterious Red Sunglo/Blackened Cayenne Sunglo, Brilliant Silver Pearl, Vivid Black
Starter Electric
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Light High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings
